You can use formulas to perform different operations with the values of the columns in the results grid. Formulas give you the ability to use advanced calculations and data transformation functions if some values in the inquiry rows are calculated or depend on data in other data fields. To do this, you can type formulas manually into certain boxes, or you can use the Formula Editor dialog box to construct or edit these formulas. These formulas are similar to the formulas used in Excel. You can define parameters and construct a formula with the parameters by using operators and functions.
In this chapter, you will learn how to modify an existing generic inquiry by using formulas as follows:
You may find the information in this chapter useful when you are responsible for the customization of Acumatica ERP in your company, including developing and modifying generic inquiries to give users information they need to do their jobs. In some situations, you may want to perform calculations on values before presenting them or transform the data in some way.

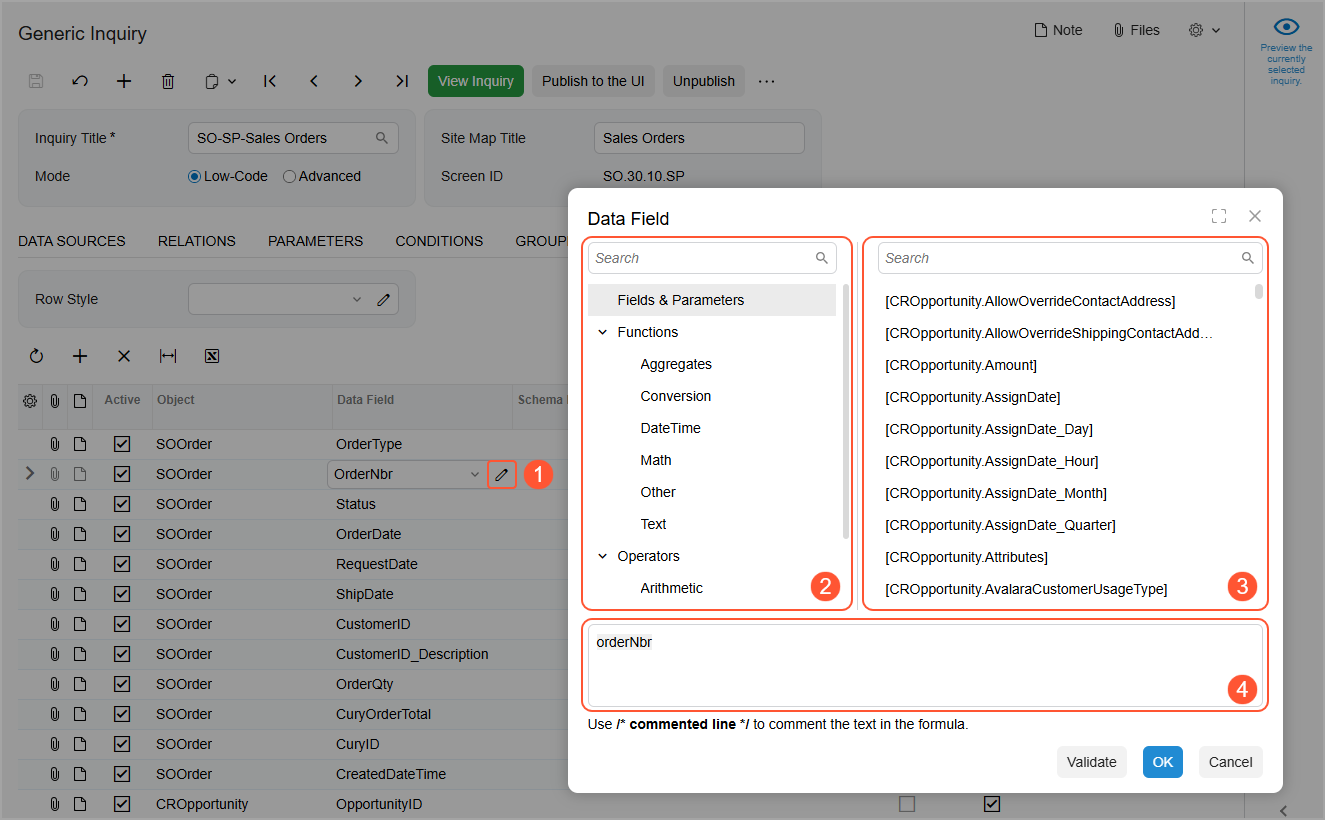

On the Results Grid tab of the Generic Inquiry (SM208000) form, each row represents a column in the resulting inquiry form. To specify a formula that determines the value in a column of the resulting inquiry form, you use the Formula Editor dialog box. To invoke the dialog box, you click a cell in the column of the needed row and then click the Edit button (see Item 1 in the following screenshot).
You can enter the formula directly in the Formula Text pane or compose it by selecting fields and using operators and functions.
On the Results Grid tab of the Generic Inquiry (SM208000) form, you can use formulas to specify the highlighting color of a row, a column or a particular cell in the inquiry results.
For example, suppose that you have an inquiry that lists open cases and shows the priority of each case in the Priority column, and that you would like to highlight with red the entire rows that display cases with a high priority. On the Results Grid tab of the Generic Inquiry form, you invoke the Formula Editor in the Row Style box (which is located in the Selection area of the tab). You use the IIf function for this purpose and compose the following formula: =IIf([CRCase.Priority]=’H’, ’red’, ’default’). The system processes the formula as follows: If the value in the Priority column equals H, then highlight it with red; otherwise, use the default color (which is predefined and has no highlighting).
If you would like to use red highlighting for only the cell in the Priority column for a case with high priority, you add the formula to the Style column for the row with the data field that holds the value of the case priority.

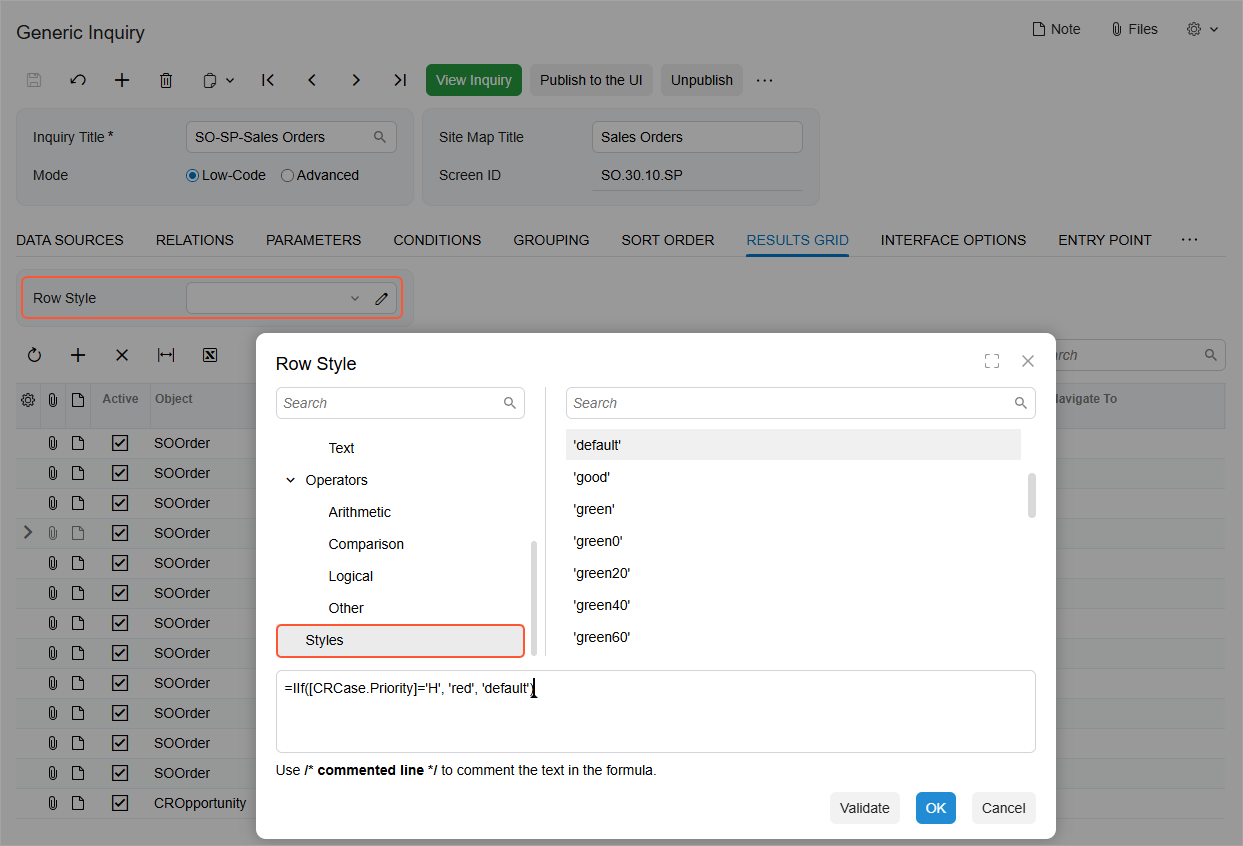

When you invoke the Formula Editor in the Row Style box or in the Style column of the Results Grid tab, the system displays the Styles component type in the Component Type pane of the Formula Editor. The Component Selection pane lists the available colors from this component type, as shown in the following screenshot.
You can use formulas for text strings—for example, to change uppercase to lowercase, to select a part of a string, to replace a string value with a new one, or to concatenate multiple strings. When you select the text category, you can find all the available functions listed in the Formula Editor.
When you construct a formula in the Data Field box of any row, it does not matter what value is specified in the Object box in the same row.
When you need to concatenate strings, you use the Concat() function. For example, suppose that in a column, you would like to see a value that is a combination of the sales order identifier and its description, separated by a space. In the Data Field box of the corresponding row, you construct the following formula: = Concat([SOOrder.OrderNbr], ’ ’, [SOOrder.OrderDesc]).
